【E-0000055】About the lock parts for CAB Door-Assy for Mini Excavators

【E-0000055】About the lock parts for CAB Door-Assy for Mini Excavators



Knowledge NO.

E-000055

Contents / Question

About the lock parts for CAB Door-Assy

for Mini Excavators

Machine model

SK30SR-5 etc

Destination

ALL


Answer

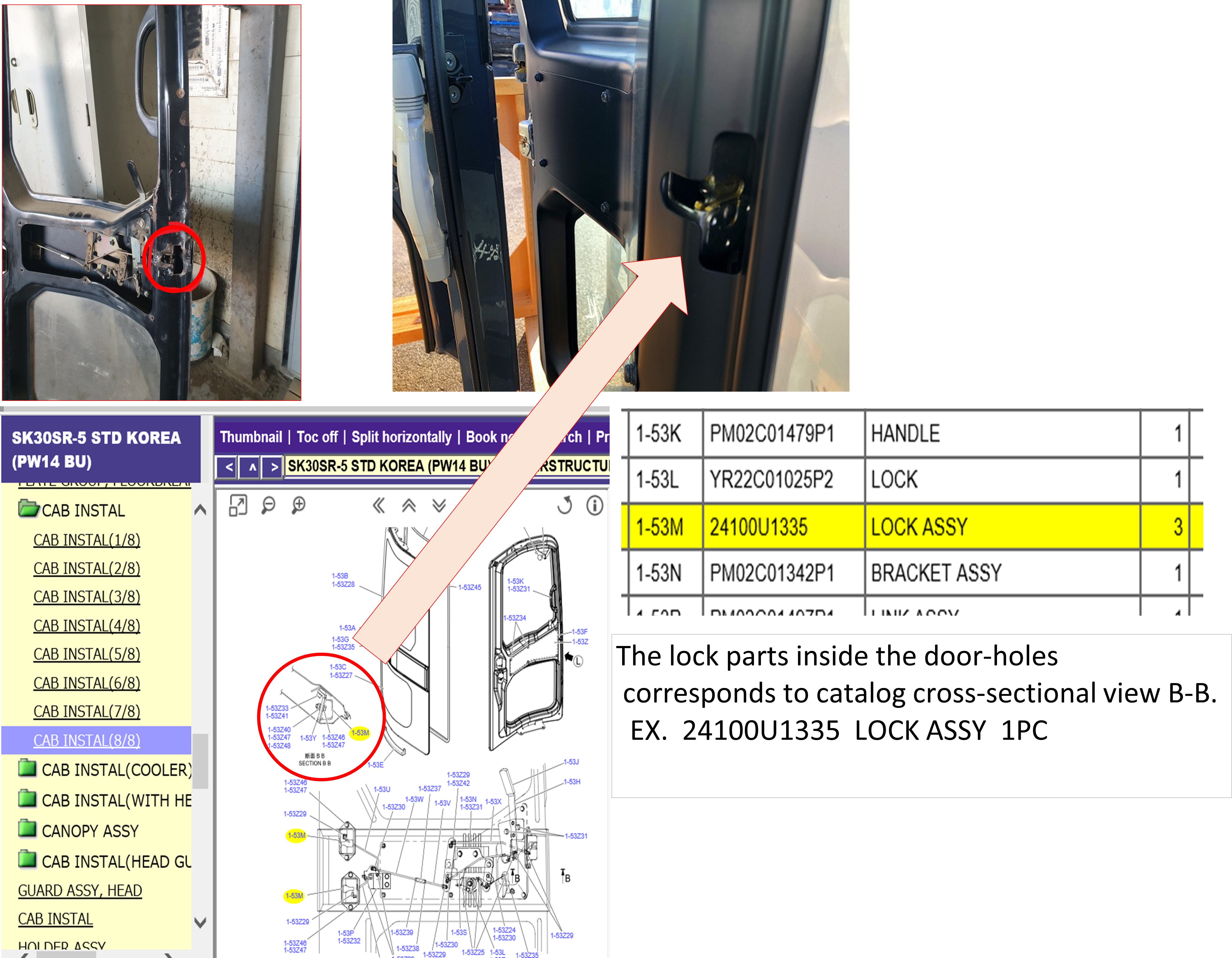

We inform that to choose a correct door lock of a Door Assy for an existing Mini Excavator, please refer to the cross-sectional drawing of the Door Assy in the catalogue as shown below,

From the above photo (left), the purpose of the hole on the door is for the installation of the parts which used to fix the door-rock.

Therefore, to find out the correct parts inside the hole, please refer to the Section BB drawing as illustrated in the catalogue. In this case, it has given the correct P/N of the door lock for this Door Assy, and which is 【24100U1335　LOCK ASSY】.
